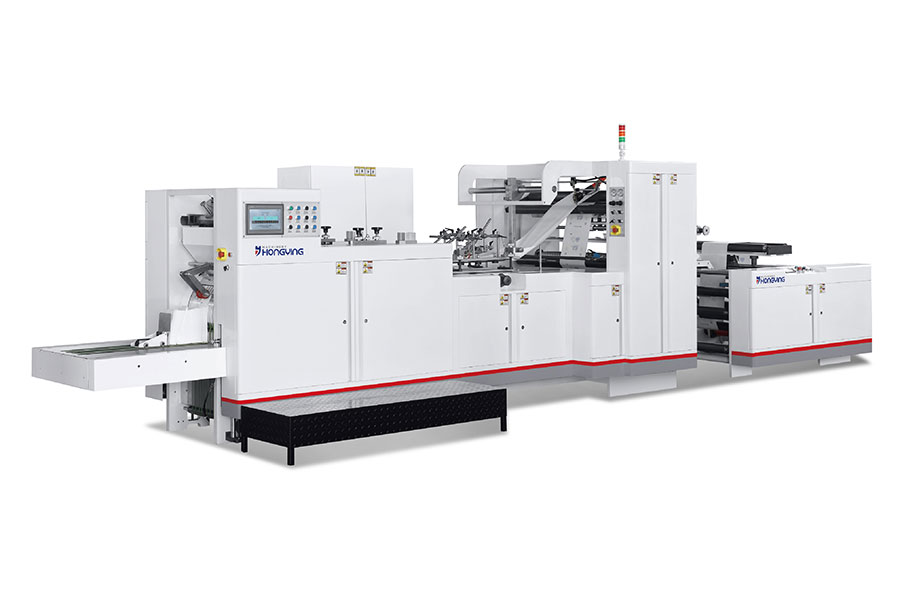

paper bag making machine

Professional shopping paper bag making machine factory ,adopts sheet paper, reel reinforced paper and twist rope paper as material to produce paper bags

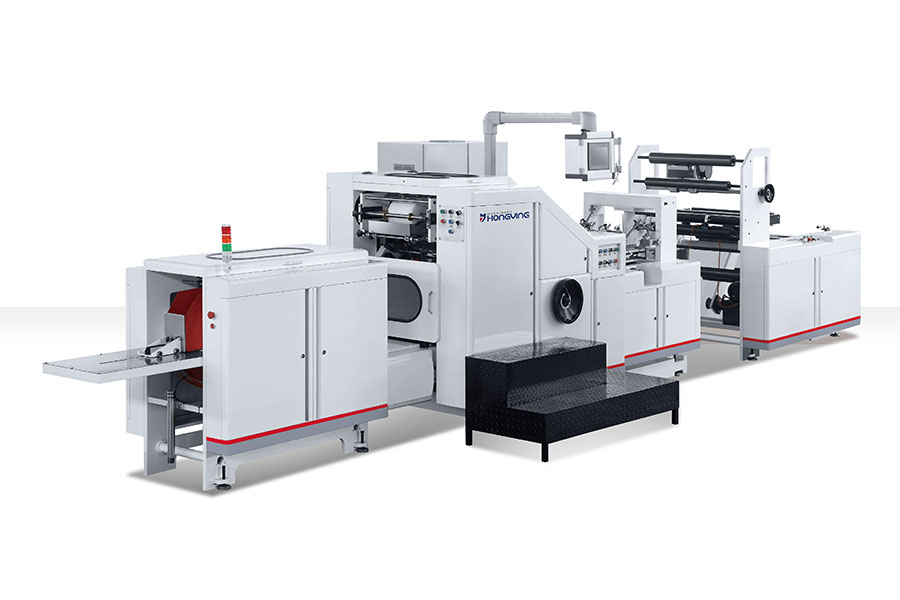

shopping paper bag making machine
This machine can produce many different sizes of paper bags. It’s an ideal machine for making shopping paper bags, such as shopping bags and  Clothing bag.

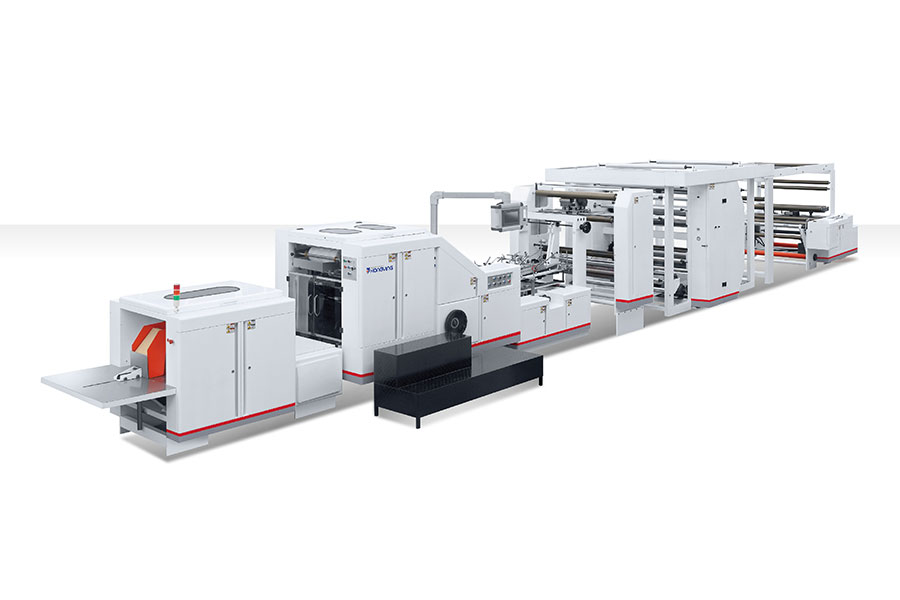

shopping paper bag machine



The process contains handle making, handle pasting, top folding (or without top folding), tube forming, gusset folding, bottom pasting, compaction output or reinforced paper pasting, top folding, tube forming, gusset folding, eyelet punching, bottom pasting and compaction output.

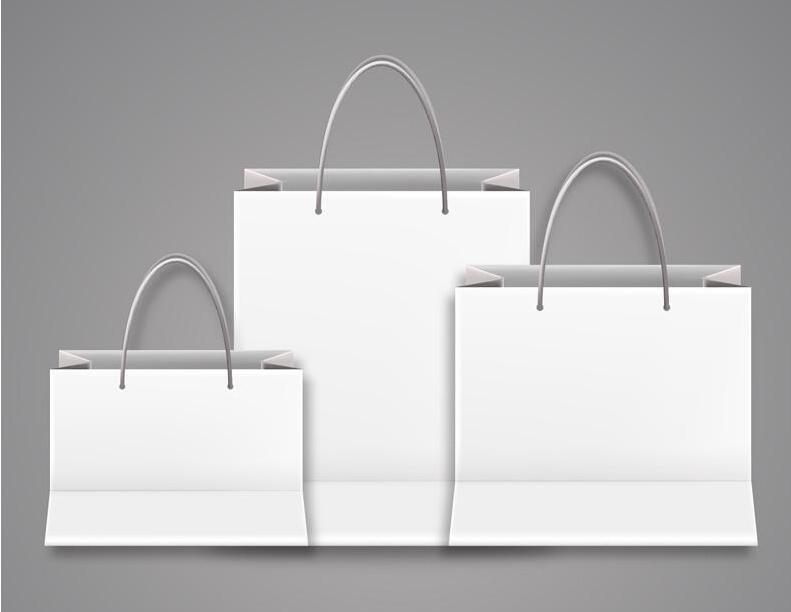

Three bag types are all available on this shopping paper bag making machine

SBR-180 Paper bag machinery is the ideal equipment for producing food paper bags, cosmetic bags and all kinds of non-staple food paper bags in domestic and abroad.

1. SBR-180 Paper bag making machine Adopt servo motor and the color code tracker, to precise tracking the printed material.

2. Motion controller, with the integreation of the fiber, to realize the gigh speed and high precision motion control, process test.
3. Adopt touch screen interface, operating functions are cleared at a glance, it with good man-machine interface.
4. Using the cold spray adhesive system, the glue can automatic adjust according to the machine’s running speed.
5. machine is equipped with a paper jam detector, it will automatically alarm when block, to protect the machine when paper jamed.



MODEL

SBR-180

WIDTH OF PAPER

600 MM

CUTTING LENGTH

270-500 MM

WIDTH OF PAPER BAG

80-180 MM

LENGTH OF PAPER BAG

190-370 MM

WIDTH OF BAG BOTTOM

50-100 MM

PAPER WEIGHT

45-120 GSM

MAX. SPEED

200 PCS/MIN

SIZE OF MACHINE

7700*1700*2100 MM

TOTAL WEIGHT

4500 KG

TOTAL POWER

10 KW

PROVIDE YOU WITH EXCELLENT PAPER BAG MAKING MACHINE SOLUTIONS !
