What is a Paper Gluing Machine ?

At its core, a paper gluing machine is a device designed to apply a controlled amount of adhesive (glue) to specific areas of paper or paperboard. It automates a process traditionally done by hand, significantly boosting speed, consistency, and reliability. Machines range from compact, table-top units ideal for small print shops or craft businesses to large, high-speed automated lines integrated into industrial packaging plants.

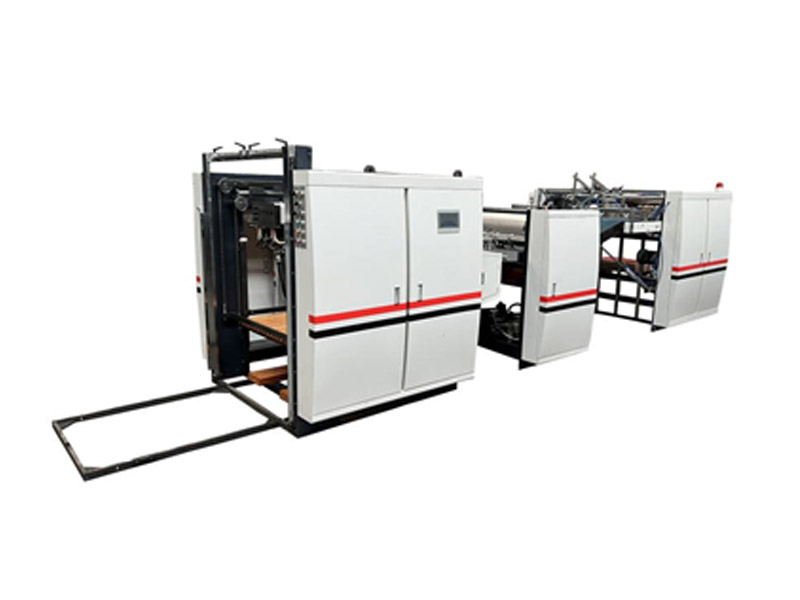

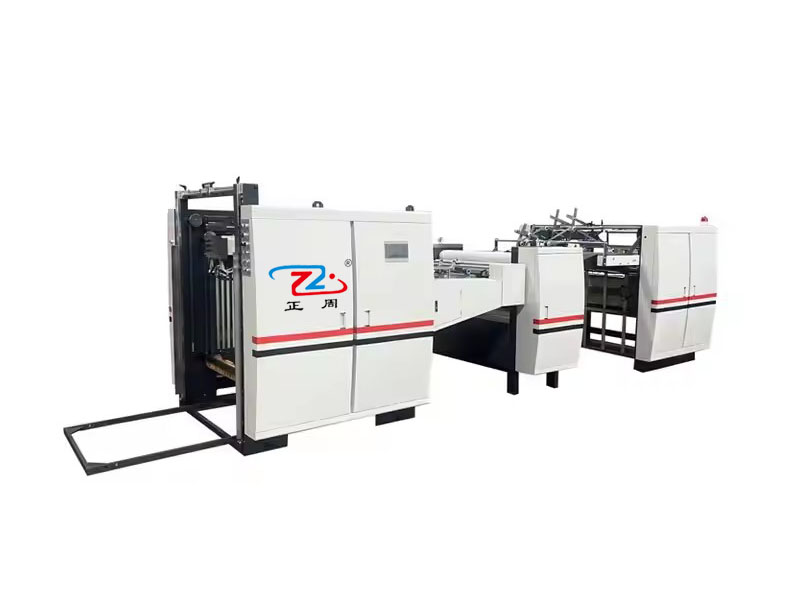

High Productivity: This Wine Box Lamination Gluing Machine is designed for high-speed operation, capable of processing 50 sheets per minute, making it an ideal choice for large-scale printing shops and manufacturing plants.

Versatile Paper Handling: The machine can handle a wide range of paper sizes, from 260x260mm to 960x750mm, and paper thickness of 100-1500gsm, catering to various industries such as printing shops, garment shops, and hotels.

User-Friendly Design: This semi-automatic machine is easy to operate, allowing users to focus on other tasks while the machine performs the laminating, gluing, and pasting functions efficiently.

Durable Construction: With a robust design and high-quality core components, including a motor, bearing, and gear, this machine is built to last, providing a 1-year warranty on the core components.

Global Compatibility: The machine operates on both 380v and 220v power sources, making it suitable for use in various countries and regions, including those with different electrical standards.

E-mail: amy@cnzzjx.com sales@cnzzjx.com

The Unsung Hero of Binding: Your Guide to the Wine Box Lamination Paper Gluing Machine

In the bustling world of printing, publishing, and packaging, efficiency and precision are paramount. While flashy printers often grab the spotlight, a crucial piece of equipment quietly ensures products hold together flawlessly: the paper gluing machine. This workhorse automates the critical task of applying adhesive, transforming stacks of paper into sturdy books, notebooks, boxes, folders, and countless other items. Let's delve into why this machine is indispensable.

How Does a Paper Gluing Machine Work ?

The process typically involves these key steps:

Feeding: Sheets or signatures (folded sections) are fed into the machine, often automatically via a feeder system.

Positioning: The paper is precisely aligned to ensure glue is applied in the exact correct location (e.g., the spine of a book, the flap of a box).

Glue Application: This is the heart of the machine. Different methods exist:

Wheel Application: A rotating glue wheel picks up adhesive from a reservoir and transfers it to the paper edge as it passes by.

Nozzle/Jet Application: Precision nozzles spray or jet a controlled stream or dots of glue onto the target area. This is common for complex patterns or spot gluing.

Brush Application: Less common now, brushes can be used for specific, often manual, applications.

Drying/Curing (Optional): Some inline machines incorporate drying systems (air drying, IR drying) to set the glue before the next production step, especially crucial for high-speed operations.

Delivery: The glued paper is neatly stacked or conveyed to the next station (e.g., a binding press, folding machine, or collection point).
